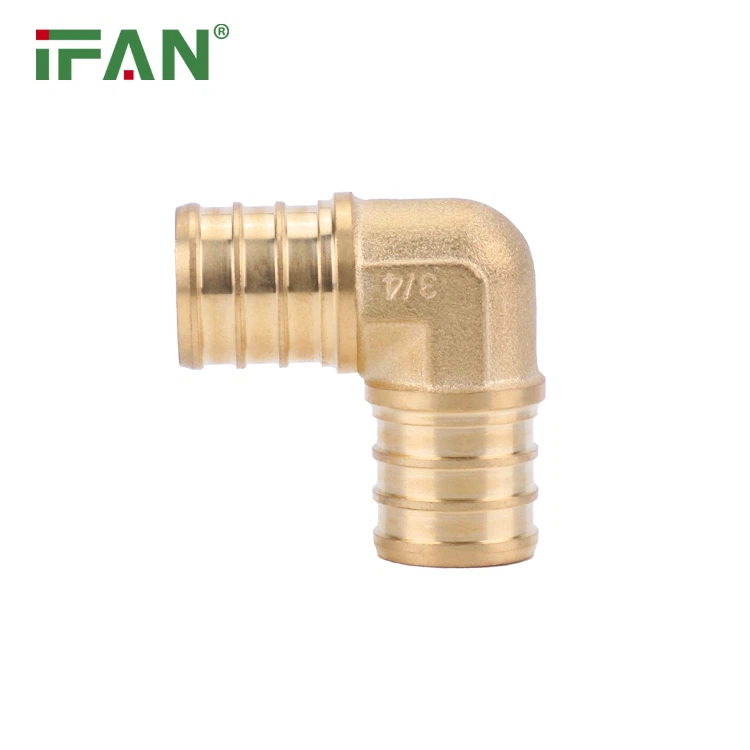

Name: China Customized PEX Axial Fitting Manufacturers Suppliers Factory - Fengfan Piping
Brand: IFAN
SKU: 268132437

A PEX axial fitting (also called a PEX expansion fitting) is a type of connector used in PEX plumbing systems that relies on thermal or mechanical expansion to create a secure, leak-proof joint. Unlike crimp or press fittings, axial fittings require the PEX pipe to be expanded before insertion, allowing for a tight, stress-free connection.

Key Features & Benefits

1. How It Works
Expand the PEX Pipe – Using a manual or electric expansion tool, the pipe end is stretched.

Insert the Fitting – The expanded PEX is pushed onto the barbed fitting.

Contraction & Seal – The PEX shrinks back, creating a strong mechanical grip around the fitting.

2. Advantages
✔ No Metal Sleeves or Rings – Eliminates potential corrosion points.
✔ Full Flow Diameter – No internal restriction (ideal for hydronic heating).
✔ Flexibility – Allows slight pipe movement without leaks (good for thermal expansion).
✔ Reliability – Fewer failure points compared to crimp/clamp methods.

3. Materials & Types
Fitting Material: Brass (DZR for water safety) or polymer.

PEX Compatibility: Works best with PEX-A (most expandable) but can also be used with PEX-B if properly expanded.

Common Applications
Radiant Floor Heating (large-diameter PEX loops).

Domestic Water Supply (hot & cold plumbing).

Snow Melting Systems (high-flow applications).

Commercial Hydronic Systems (reduced pressure drop).

Comparison to Other PEX Fittings

Feature	Axial (Expansion) Fitting	Crimp Fitting	Press Fitting
Installation	Requires expansion tool	Needs crimp rings & crimper	Needs press tool
Flow Restriction	None (full bore)	Slight restriction	Slight restriction
Best for PEX Type	PEX-A (most flexible)	PEX-B/C	PEX-B/C
Reusability	No (permanent)	No	No
Cost	Higher (due to tool investment)	Lower	Moderate

Standards & Certifications

ASTM F1960 (Standard for cold-expansion PEX fittings).

NSF/ANSI 61 (Drinking water safety).

ISO 15875 (International PEX system standards).

Conclusion

PEX axial fittings are ideal for high-performance plumbing and heating systems, offering superior flow, durability, and leak resistance. While they require a specialized expansion tool, they provide long-term reliability, especially in PEX-A radiant heating and large-scale plumbing projects.
