1. Design Standards and Technical Compliance

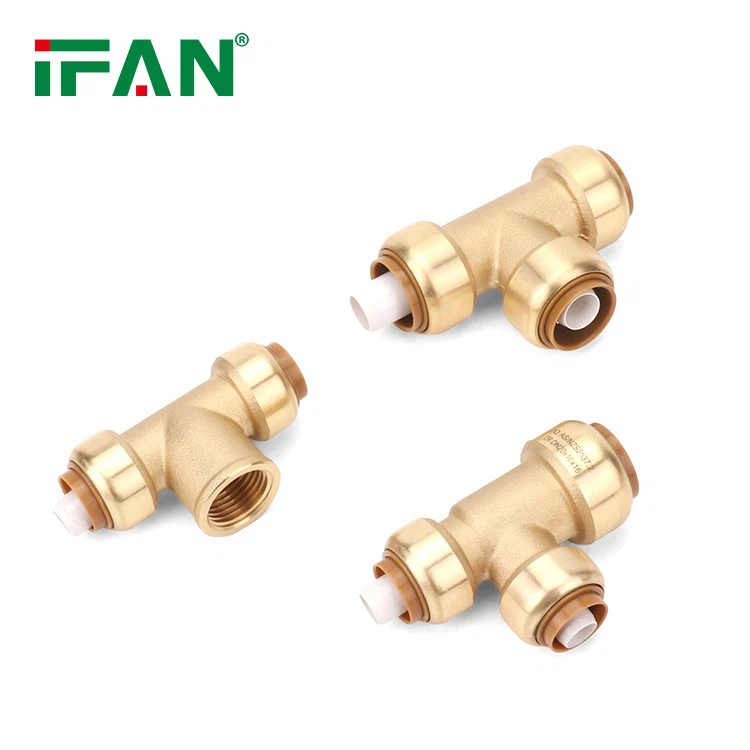

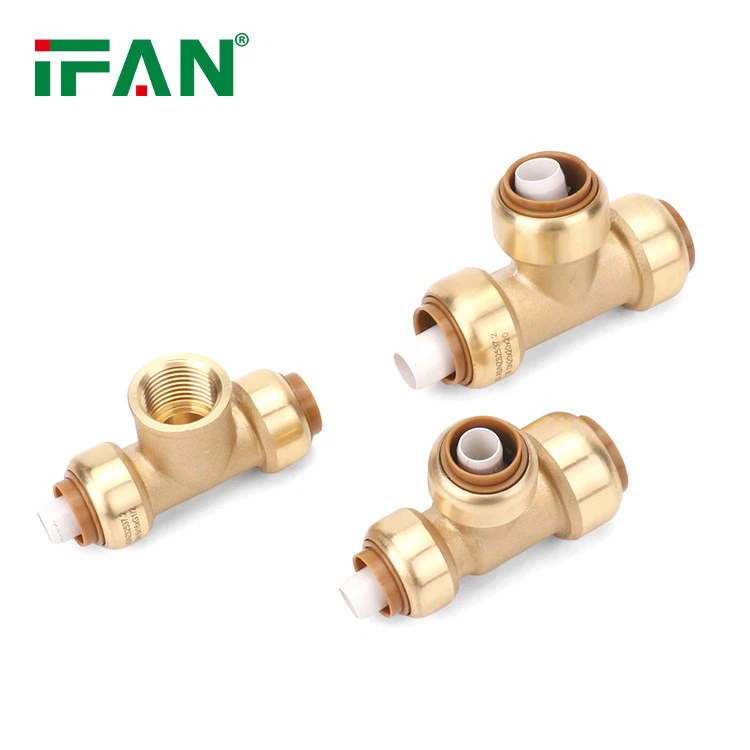

IFAN Yellow PEX Shark Bite Fittings are developed according to internal engineering specifications based on international mechanical connection principles for push-fit plumbing systems. While not governed by a single unified international standard, these fittings are produced under a quality management system aligned with ISO 9001:2015 and undergo internal testing that mirrors performance benchmarks found in standards such as ASSE 1061 and ASTM F877. Dimensional parameters, sealing integrity, and pressure ratings are defined and verified across every production batch. IFAN ensures full compatibility with standard SDR-9 PEX tubing sizes ranging from 16mm to 32mm, with documented tolerances maintained to ensure leak-free engagement.
2. Brass Housing and Structural Core Composition
The main housing of each Yellow Shark Bite Fitting is precision-machined from high-performance brass, typically CW617N or equivalent. This brass grade is selected for its machinability, dezincification resistance, and mechanical durability under varying thermal and pressure cycles. The fitting body incorporates internal retaining teeth and a seal chamber engineered to accept PEX tubing with minimal insertion force. The brass components undergo heat treatment and surface passivation to improve structural integrity and corrosion resistance. Each unit is visually inspected post-machining to eliminate burrs or dimensional irregularities before assembly.
3. Gripping Mechanism and Tooth Ring Assembly
IFAN's Shark Bite Fittings use a stainless steel grab ring system to hold the PEX pipe securely in place. The grab ring, made of SS304 or SS316 stainless steel, features angled teeth that grip the pipe's outer wall upon insertion. These teeth are formed with a specific geometry to ensure maximum pull-out resistance without damaging the pipe surface. The internal angle and spacing of the teeth are manufactured using precision dies to maintain uniformity. The ring is housed within a retaining collar and designed to activate automatically when the pipe is pushed into the fitting, creating an immediate mechanical lock.
4. Sealing Technology and O-Ring Specifications
A key feature of the IFAN Yellow PEX Shark Bite Fittings is the elastomeric sealing system, typically composed of EPDM or peroxide-cured rubber O-rings. These seals are engineered to comply with elevated temperature and pressure cycling performance targets, maintaining elasticity and compression under repeated stress. The sealing ring is installed into a dedicated machined groove within the brass body, and is dimensioned to provide uniform radial compression against the inserted pipe. O-rings are batch-tested for compression set, thermal degradation, and chemical compatibility with potable water to ensure long-term sealing integrity.
5. Dimensional Consistency and Machining Tolerances
Dimensional accuracy is a critical parameter for push-fit fittings. IFAN employs CNC machining centers with real-time feedback sensors to maintain tight tolerances on critical dimensions such as pipe bore diameter, grab ring seating depth, and seal groove radius. Tolerances are maintained within ±0.05 mm across mating surfaces to guarantee leak-free performance and easy pipe insertion. A statistical process control (SPC) method is used to track key dimensions during production. Non-conforming parts are automatically separated and undergo quality review before reprocessing or disposal.
6. Pressure and Thermal Testing Protocols
Each production lot of IFAN Yellow PEX Shark Bite Fittings undergoes extensive testing to simulate field conditions. Pressure testing includes hydrostatic pressure hold at up to 25 bar and burst pressure tests exceeding 40 bar to validate structural soundness. Thermal performance is tested through multiple heating and cooling cycles ranging from 0°C to 95°C, imitating hot and cold water applications. Leak integrity is evaluated over extended dwell periods, including tests with pressure applied at elevated temperatures for hours or days. A selection of fittings also undergoes vibration and mechanical stress testing to verify resilience under movement or thermal expansion.
7. Visual Inspection and Assembly Verification
Every IFAN Shark Bite Fitting is subjected to a detailed visual and tactile inspection process before packaging. Quality technicians verify that the grab ring is seated correctly, that the O-ring is present, centered, and undamaged, and that the brass body shows no surface imperfections such as cracks or tool marks. The outer finish is inspected for uniform coloration and oxidation resistance. A random sampling process involves partial or full disassembly of fittings to verify the internal assembly sequence and tolerances. Only fittings that pass all verification checkpoints are approved for shipment.
8. Product Identification and Color Coding
IFAN Yellow PEX Shark Bite Fittings are clearly marked to ensure easy identification during inventory and installation. The yellow color is used as a visual designation for this fitting series and is applied via anodized coating or durable polymer collars, depending on the model. Each fitting is also laser-etched or stamped with information including size, batch code, and part number. This allows for full traceability throughout the supply chain. The markings are tested for durability under abrasion, water exposure, and UV to ensure readability throughout the product lifecycle.
9. Storage, Handling, and Packaging Requirements
Post-inspection, all fittings are cleaned, dried, and packaged in sealed polyethylene bags or individual blister packs, depending on market requirements. IFAN uses moisture-absorbing packets inside cartons to prevent degradation of elastomeric seals during long-term storage. Clear labeling indicates the fitting size, quantity, batch number, and production date. Fittings are stored in climate-controlled warehouses to avoid oxidation, O-ring shrinkage, or plastic collar deformation. During transport, fittings are secured with shock-absorbing inserts to avoid impact damage to the sealing components or gripping mechanism.
10. Internal Quality Control Documentation and Audits
IFAN maintains full documentation for every batch of Shark Bite fittings, including raw material certificates, machining records, testing logs, and inspector reports. This quality control data is archived digitally and used in routine internal audits. Periodic third-party inspections are conducted to validate conformance to internal specifications and international guidelines. Any anomalies identified in the field are cross-checked with this database to track production dates and corresponding material or process deviations. This closed-loop system ensures continuous product improvement and accountability throughout the manufacturing process.
Conclusion: Manufacturing Precision and Fit Reliability
IFAN Yellow PEX Shark Bite Fittings are engineered through a tightly controlled production system, with precise machining, multi-point quality inspections, and rigorous performance testing. The integration of high-grade brass, stainless steel gripping systems, and elastomeric sealing rings results in a mechanical push-fit connection that meets strict technical expectations. From raw material selection to final packaging and traceability, each fitting reflects IFAN's commitment to consistency, safety, and mechanical integrity in professional plumbing systems.
