PERT-AL-PERT (Polyethylene of Raised Temperature Resistance - Aluminum - Polyethylene of Raised Temperature Resistance) is an advanced multilayer
pipe designed for demanding hot/cold water and heating applications. It combines the flexibility of plastic with the strength of metal for superior performance.
PERT-AL-PERT Pipe Specification:
12-32mm diameter
Service temperatures: 40°C – 90°C
Maximum working pressure: 10bar
Five-layer composite pipe
Combines the benefits of both metal and plastic pipes
Aluminium core prevents the ingress of oxygen
Flexible yet formstable
Safe and fast installation
50 Year Guarantee
| Specification | Outer Dia. | Inner Dia. | Wall Thick | Alu. Thick | Packing Legth | |
| (mm) | (inch) | (mm) | (mm) | (mm) | (mm) | (m/coil) |
| 12×1.5 | 3/8" | 12 | 9 | 1.5 | 0.2 | 100/200/Customized |
| 16×2.0 | 1/2" | 16 | 12 | 2 | 0.20 | 100/200/Customized |
| 20×2.0 | 3/8" | 20 | 16 | 2 | 0.25 | 100/200/Customized |
| 25×2.5 | 3/4" | 25 | 20 | 2.5 | 0.25 | 100/200/Customized |
| 26×3.0 | 3/4" | 26 | 20 | 3 | 0.3 | 100/200/Customized |
| 32×3.0 | 1" | 32 | 26 | 3 | 0.3 | 100/200/Customized |
Pipe fittings
To support the connection of PERT-AL-PERT tubes, IFAN offers a full range of brass fittings and installation tools:
• 16-32mm brass compression fittings
• 16-32mm brass press fittings

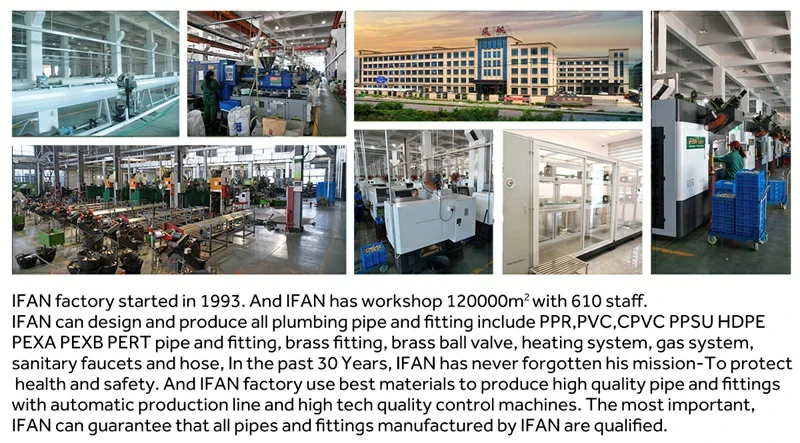

IFAN is one of the best Piping manufacturers in China, the main products include PPR, PEX,PVC,PP pipes and fittings, Brass Fittings/valves/faucets and so on.Welcome to contact us for more information!
