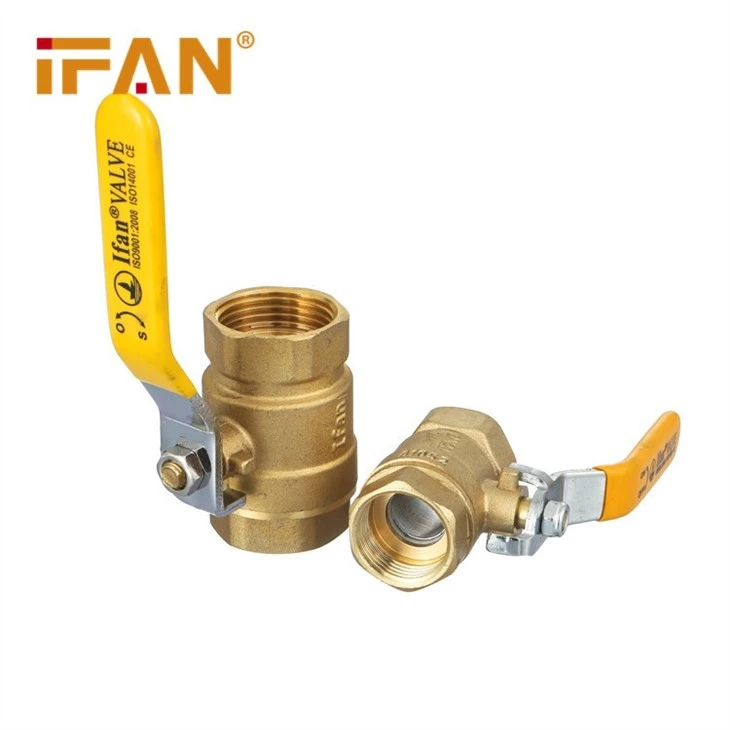

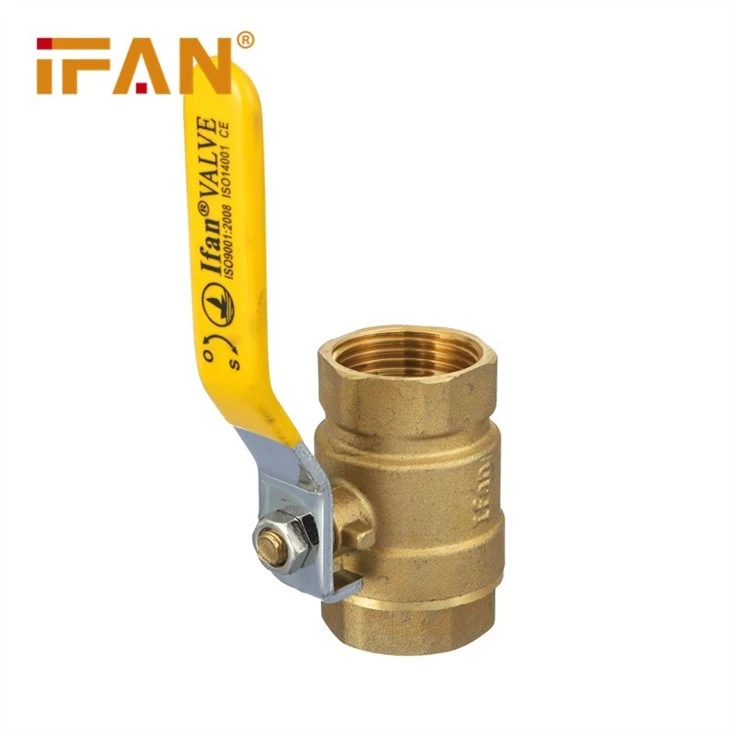

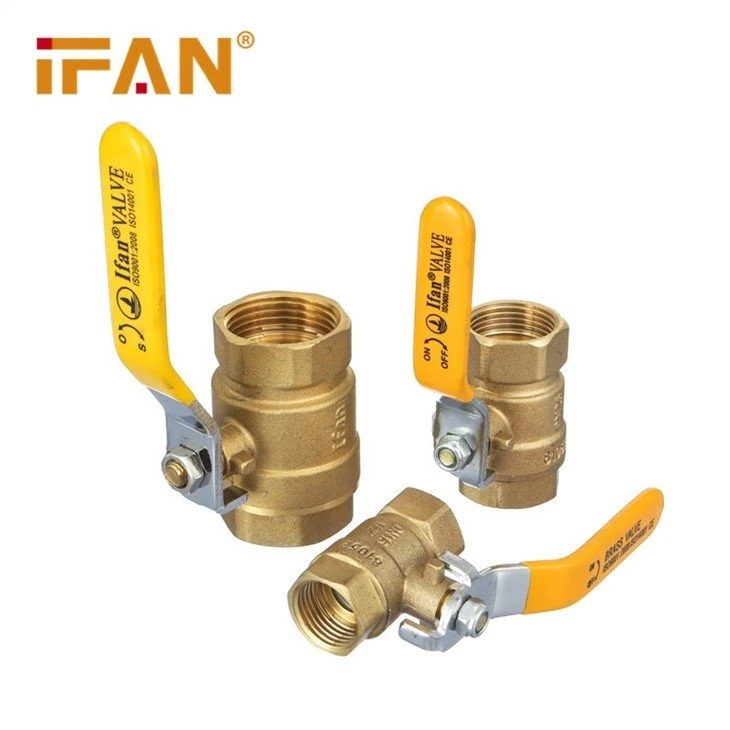

Brass Ball Valve 1 Inch

Specification

The main technical parameters of the product:
1. Use high-quality brass material and hot forging process
2. The working medium of the ball valve is water.
3. The nominal pressure is 2.5MPa, special requirements can be customized.

Products details
1. Selected brass casting, resistant to pressure and abrasion, healthy and environmentally friendly, and durable. The brass body is made of brass 59, which is safer to use.
2. brass casting one-piece molding-body casting has no tracheotomy, no water leakage, and the overall shape is delicate and not rough.
3. Stainless steel nut, iron ball, brass rod, stainless steel anti-loosening thread, anti-falling resistance
4. CW617n brass is calibrated by thickness


Installation guide
1. For ball valves connected by pipe thread, when installing and tightening, the pipe should be perpendicular to the end surface of the valve body, and clamp the hexagonal or octagonal part on the same side of the thread.
2. To connect brass ball valve with internal thread, the length of the external thread of the pipe end must be controlled, so as not to affect the tightness of the pipe end thread is too long.
3. When installing the ball valve connected by pipe thread, the sealing material should be clean and clean.
4. When installing, make sure that there are no obstacles within the opening and closing range of the ball valve handle, such as walls, pipes, and connecting nuts.
5. When the handle of the ball valve is parallel to the valve body, it is open, and when it is vertical, it is closed.
6. The medium should not contain particles, corrosive gases or liquids.

Other wholesale products

The scope of use.

Ball valves are mainly used to cut off, distribute and change the direction of medium flow in the pipeline. In order to prolong the service life of the ball valve, it should be used for fully open and fully closed.
