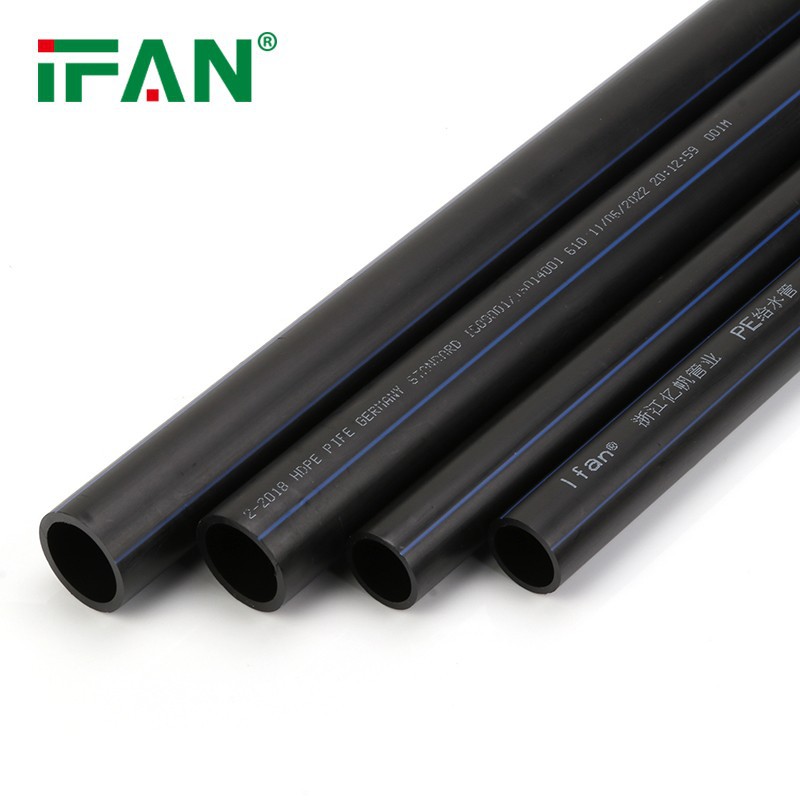

HDPE (High-Density Polyethylene) pipes are widely used in various applications due to their flexibility, durability, and resistance to corrosion and chemicals. To connect and manage HDPE pipes, a range of specialized fittings is available. Below is a comprehensive guide to the types of pipe fittings used for HDPE pipes, their functions, and common applications.
Types of HDPE Pipe Fittings
1. Butt Fusion Fittings
Function: Used to connect HDPE pipes end-to-end using heat fusion.
Types: Elbows, tees, reducers, couplings, end caps.
Applications: Water supply, gas distribution, industrial pipelines.
2. Electrofusion Fittings
Function: Use embedded heating elements to fuse the fitting to the pipe when an electric current is applied.
Types: Couplings, saddles, elbows, tees.
Applications: Repair work, connections in tight spaces, municipal water systems.

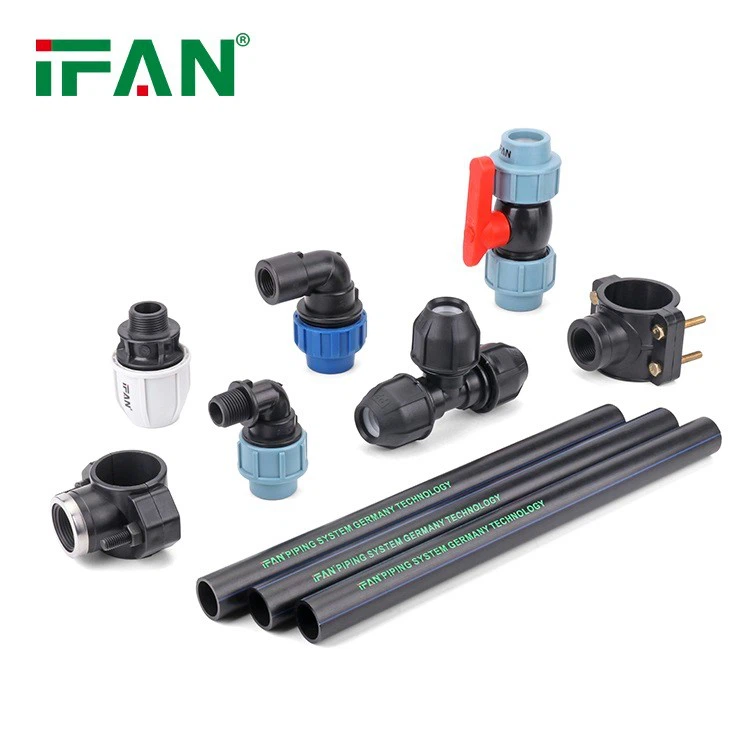

3. Mechanical Fittings
Function: Provide a secure connection without the need for heat fusion.
Types: Compression fittings, flange adapters, threaded fittings.
Applications: Temporary installations, connections to other types of pipes, low-pressure systems.
4. Socket Fusion Fittings
Function: Use a heated tool to melt the pipe and fitting, which are then joined together.
Types: Elbows, tees, couplings.
Applications: Small-diameter pipes, plumbing systems.
5. Flange Adapters
Function: Connect HDPE pipes to flanged equipment or other piping systems.
Applications: Pump stations, water treatment plants, industrial systems.
6. Elbows
Function: Change the direction of the pipeline (e.g., 45° or 90° angles).
Applications: Irrigation systems, water supply networks.
7. Tees
Function: Split the pipeline into multiple directions.
Applications: Distribution networks, irrigation systems.
8. Reducers
Function: Connect pipes of different diameters.
Applications: Systems requiring changes in pipe size.
9. Couplings
Function: Connect two pipes of the same diameter in a straight line.
Applications: Extending pipelines, repair work.
10. End Caps
Function: Seal the end of a pipe.
Applications: Temporary or permanent sealing of pipelines.
11. Saddles
Function: Allow a branch connection to be made on an existing pipeline.
Applications: Adding new connections to existing pipelines.
12. Valves
Function: Control the flow of water or other fluids.
Types: Ball valves, gate valves, check valves.
Applications: Water supply, irrigation, industrial systems.
Advantages of HDPE Pipe Fittings
Durability: Resistant to impact, abrasion, and environmental stress cracking.
Chemical Resistance: Suitable for transporting a wide range of chemicals.
Flexibility: Can withstand ground movements and vibrations.
Leak-Proof Joints: Fusion welding creates seamless, leak-proof connections.
Cost-Effective: Low maintenance and long lifespan reduce overall costs.
Applications of HDPE Pipe Fittings
Water Supply: Municipal water distribution, potable water systems.
Gas Distribution: Natural gas and propane pipelines.
Industrial Systems: Chemical transport, slurry lines, cooling systems.
Irrigation: Agricultural and landscape irrigation systems.
Mining: Slurry transport, tailings disposal.
Wastewater Treatment: Sewer systems, effluent disposal.
Marine and Offshore: Seawater intake, desalination plants.
Installation Methods
Butt Fusion:
Uses a heating plate to melt the pipe ends, which are then pressed together.
Ideal for large-diameter pipes and long-distance pipelines.
Electrofusion:
Uses fittings with embedded heating elements to create a fusion joint.
Suitable for repairs and connections in confined spaces.
Mechanical Connections:
Use compression or threaded fittings for quick, tool-free installation.
Ideal for temporary setups or connections to non-HDPE pipes.
Comparison with Other Materials
| Feature | HDPE Fittings | PVC Fittings | Metal Fittings |
|---|---|---|---|
| Corrosion Resistance | Excellent | Good | Poor (unless stainless steel) |
| Flexibility | High | Moderate | Low |
| Installation | Requires specialized tools | Easy (solvent welding) | Complex (threading or welding) |
| Durability | High | Moderate | High (but prone to rust) |
| Cost | Moderate | Low | High |
Conclusion
HDPE pipe fittings are essential for creating reliable and efficient piping systems in various industries. Their durability, flexibility, and leak-proof connections make them ideal for water supply, gas distribution, industrial systems, and more. Whether you need butt fusion fittings for large pipelines or mechanical fittings for quick repairs, HDPE fittings offer a versatile and cost-effective solution. Always ensure proper installation and maintenance to maximize the performance and lifespan of your HDPE piping system.
