Product Features:

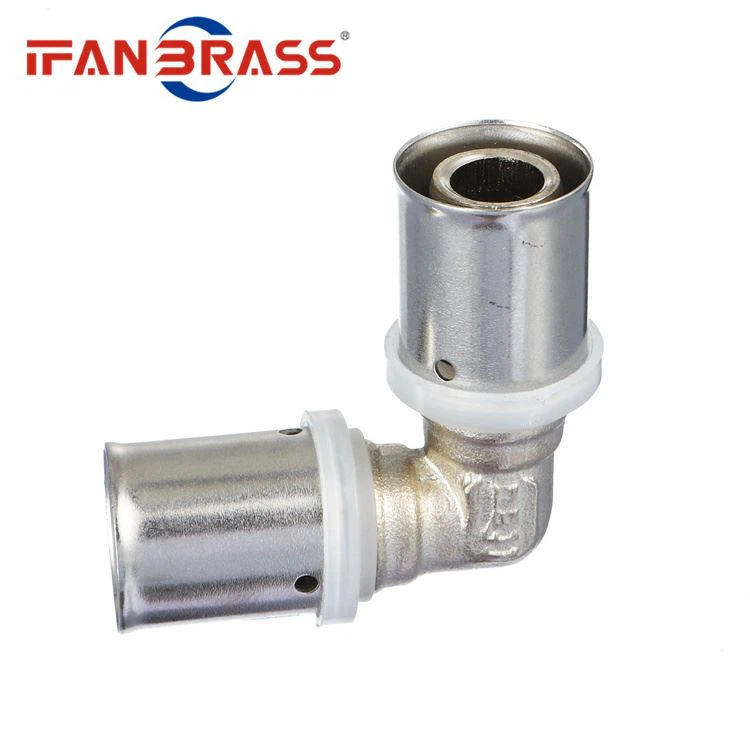

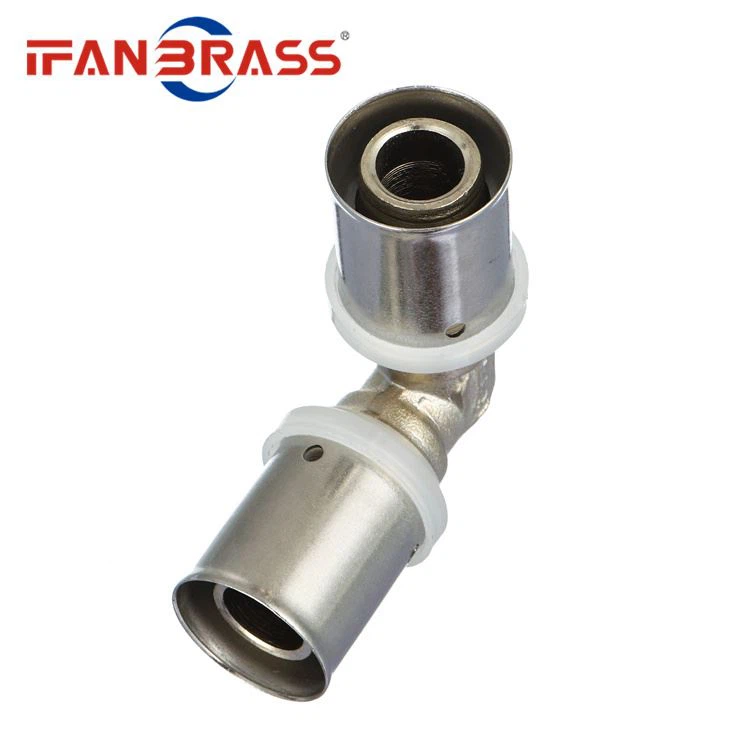

Product name: Compression reducing elbow
Material: stainless steel or copper
Size: from 16mm to 32mm.
The color of the rubber gasket can be customized
Sealing principle: The rubber O-ring shrinks and holds tightly in the radial direction.
Connection mode: use special hydraulic tools for compression connection
Purpose: Connect two pipes with different diameters to make the pipeline make a 90° turn and reduce the diameter at the same time. The production process used is produced by the entire elbow drawing sliver tapering process.
Product Size：
Size×Thickness(mm) | PCS/Bag | Weight（g） | CTN SIZE |
L20×16 | 180 | 73 | 0.011 |
L25×20 | 50 | 125 | 0.011 |
L32×20 | 160 | 122 | 0.011 |
L32×25 | 160 | 140 | 0.011 |
Product Information：
The use of compression elbow inserts the pipe into the pipe fitting, using the effective rigidity of the stainless steel material and the elastic compression ratio of the sealing material, and at the same time making full use of the length of the socket. So as to achieve the sealing effect.
Clamping connection installation steps：
Use manual or electric pipe cutting equipment to cut the pipe. To avoid the burr on the pipe end from puncturing the sealing ring in the pipe fitting, please use a special deburring device or a special file to completely remove the burr on the pipe end.
Draw a line to mark the insertion length. Use a paintbrush to draw a line at the end of the pipe to make a mark of the insertion length to ensure that the pipe is inserted into the pipe with sufficient length to avoid water leakage or falling off after compression, causing serious installation accidents
Insert the water pipe into the pipe fitting. Insert the pipe straight into the pipe fitting. Don't insert it slantingly, don't damage the sealing ring, and confirm it according to the specified insertion length before proceeding with the clamping operation.
For the compression connection, align the annular groove of the jaw of the compression tool with the annular convex part of the sealing ring in the end of the pipe fitting to carry out the compression operation.
Confirm the compression size Use a hexagonal gauge to confirm whether the compression size is in place, and the hexagonal area of the compression can be completely clicked into the hexagonal gauge, which means that the compression is in place.
The purpose of compression reducing elbow:
Connect two pipes with different diameters to make the pipeline make a 90° turn and reduce the diameter at the same time. The production process used is produced by the entire elbow drawing sliver tapering process.
According to the process: hot push elbow, stamping elbow, welding elbow, etc.
According to the material: carbon steel elbow, stainless steel elbow, alloy steel elbow and so on.
According to specifications: short radius elbow, long radius elbow, 30° 45° 60° 90° and other different degrees of elbow.
