Product Features:

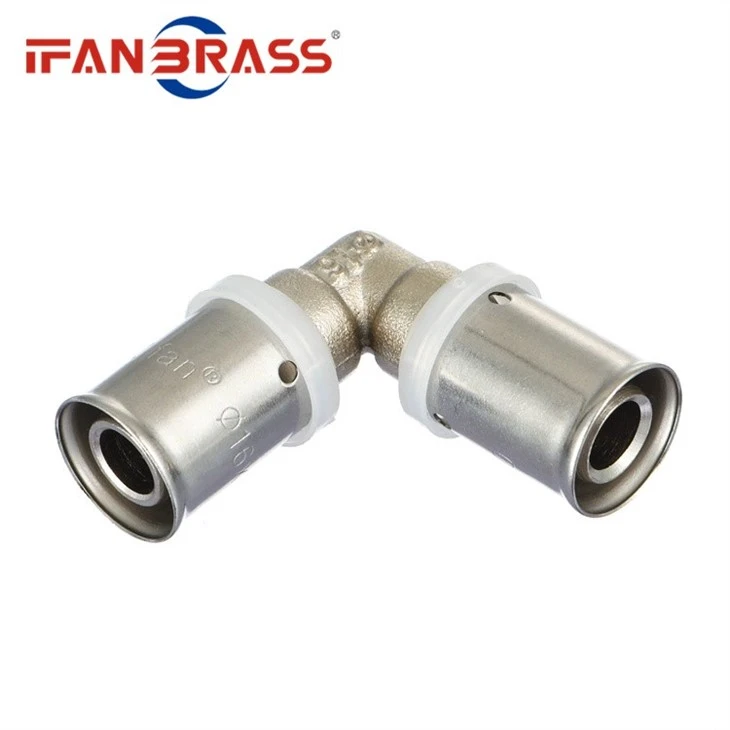

Product name: card pressing elbow
Material: stainless steel or copper
Fasteners are long in length, never leaking, and there is a rubber gasket inside.
Mainly use tool links
Size: from 16mm to 32mm.
Application: PEX-AL-PEX pipe, PE-AL-PE pipe connection, etc.
The color of the rubber gasket can be customized
Product Information：
The use of compression elbow inserts the pipe into the pipe fitting, using the effective rigidity of the stainless steel material and the elastic compression ratio of the sealing material, and at the same time making full use of the length of the socket. So as to achieve the sealing effect.
Advantages of compression elbow connection:
The jammed pipe fittings are safe and environmentally friendly, green and safe
The connection is reliable and safe, reducing post-maintenance.The compression type connection has high strength and good seismic performance, which is why it has been widely used in Japan as early as the 19th century.
Fast and convenient installation：Reject the glue connection. If the connection port is short, it cannot be connected again, which is time-consuming and labor-consuming; while the compression connection only uses special hydraulic tools, the compression connection can be easily completed, saving time, labor, and cost, and one-time installation The success rate is high.
There is no pressure for surface installation：The polishing process is that the exposed stainless steel water pipes are ornamental, and the concealed installation meets the embedded installation technical requirements of CECS153-2003 "Building Water Supply Thin-walled Stainless Steel Pipe Engineering Technical Regulations".
Maintenance-free, superior economic performance：The long service life of 70-100 years, and during the life of the building, there is almost no need to update and maintain the pipeline system, which saves a lot of manpower and material resources.
Can be used for multiple purposes：The compression elbow is suitable for the transportation of low-pressure fluids for civil use, such as cold and hot water, direct drinking water, heating, air conditioning, fire fighting, gas, etc., and can also be used for the transportation of low-pressure fluids in the pharmaceutical, beverage, food, chemical and other industries.
Working principle of compression short elbow:
Sealing principle: The rubber O-ring shrinks and holds tightly in the radial direction.
Anti-pulling principle: the compressed part is deformed, the middle is small and the two ends are big.
Anti-rotation principle: It is pressed into a hexagonal shape and cannot be rotated.
Working pressure: ≤1.6MPa.
Working temperature: -20℃-130℃.
Connection method: Use special hydraulic tools for compression connection.
