What Are IFAN PEX Double Color Fittings?
IFAN PEX Double Color Fittings are mechanical connectors used to join sections of PEX pipe. These fittings are characterized by their unique double-color design, which provides visual cues during installation. The design helps guide the installer to ensure that each component is positioned correctly for a secure and leak-free connection. These fittings are compatible with PEX-A, PEX-B, and PEX-C pipes, making them versatile enough for a wide range of plumbing systems.

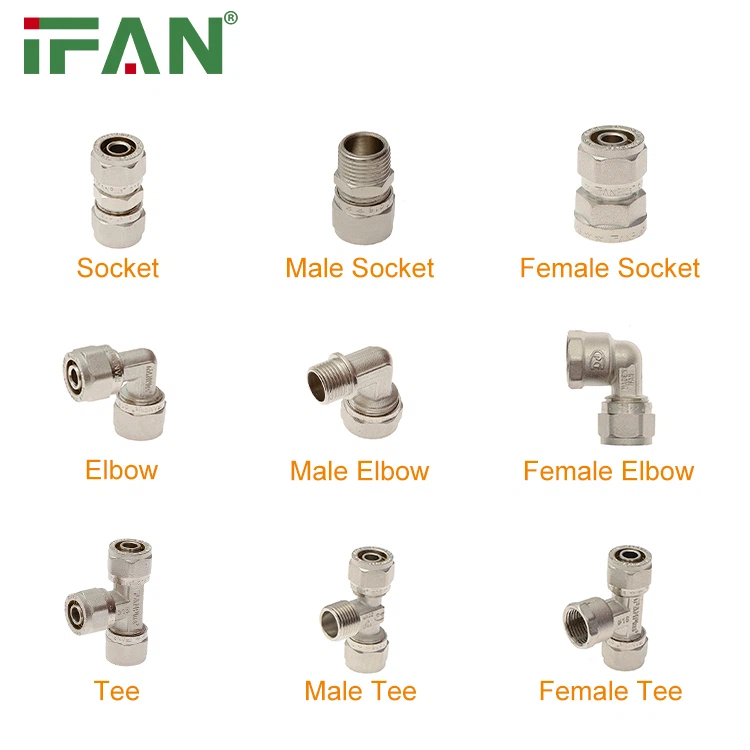

The fittings themselves come in various shapes and sizes, such as straight connectors, elbows, tees, and adapters. The double-color feature helps simplify the installation process by indicating how the parts should be arranged. These fittings are used extensively in both residential and commercial plumbing applications.
Key Features of IFAN PEX Double Color Fittings
Dual-Color Design
One of the most distinguishing features of IFAN PEX Double Color Fittings is their dual-color design. The use of two colors on the fitting helps the installer quickly identify the correct alignment of components, ensuring that the pipe and fitting are properly connected. This visual guide minimizes installation errors and provides a clear indication of whether the parts are in the right position.
Compression Technology
These fittings utilize compression technology, where a compression nut and ferrule are used to create a secure connection between the PEX pipe and the fitting. The compression nut is tightened to compress the ferrule around the pipe, forming a tight seal. This method of joining pipes eliminates the need for special tools such as crimping tools or expansion tools, making the installation process easier and faster.
Versatile Applications
These fittings are available in a variety of configurations, including straight connectors, elbows, tees, and adapters. This makes them suitable for use in a wide range of applications, from simple residential plumbing installations to more complex commercial or industrial systems.
The Role of Socket Fittings in PEX Systems
Sockets are one of the most commonly used types of fittings in PEX plumbing systems, and they play a crucial role in connecting two sections of PEX pipe. IFAN PEX Double Color Fittings can be found in socket configurations, where the fitting serves as the connection point for two pieces of PEX piping.
Sockets work by allowing the pipe to be inserted into a fitting, which is then secured in place with a compression nut and ferrule. The use of socket fittings ensures that the pipes remain securely in place, even under pressure or when subjected to temperature fluctuations. This makes socket fittings essential for maintaining the integrity of PEX plumbing systems, ensuring that water or other fluids can flow freely without leaks or disconnections.
Installation of IFAN PEX Double Color Fittings with Socket Connections
The installation process for IFAN PEX Double Color Fittings with socket connections is straightforward and can be done with basic tools. Below is a step-by-step guide on how to install these fittings:
Cut the PEX Pipe
Start by cutting the PEX pipe to the desired length using a PEX pipe cutter. Make sure the cut is clean and square to ensure a proper connection with the fitting. Uneven cuts can cause gaps between the pipe and the fitting, leading to potential leaks.
Insert the Pipe into the Socket
Slide the PEX pipe into the socket of the fitting. Ensure that the pipe is fully inserted into the fitting, and make sure that the pipe reaches the end of the socket. The dual-color design on the fitting can help ensure that the components are aligned properly during this step.
Place the Compression Nut and Ferrule
Once the pipe is securely inserted into the fitting, slide the compression ferrule and nut over the pipe. The ferrule should be placed just before the socket opening, while the compression nut will sit on the outside of the fitting.
Tighten the Compression Nut
Using a wrench or pliers, tighten the compression nut around the fitting. The tightening process compresses the ferrule onto the PEX pipe, creating a tight seal. Be sure to tighten the nut securely, but avoid over-tightening, as this can damage the fitting or the pipe.
Test for Leaks
Once the fitting is fully installed, it's important to test for leaks. Turn on the water supply and check for any signs of leakage around the fitting. If the connection is tight and secure, the installation is complete.
Applications of IFAN PEX Double Color Fittings with Socket Connections
Hydronic Heating Systems
Socket fittings are also used in hydronic heating systems, which circulate hot water through PEX pipes to heat a building. The compression fittings ensure that the PEX pipes remain securely connected, preventing leaks that could reduce system efficiency or cause damage to the heating system.
Conclusion
IFAN PEX Double Color Fittings play an essential role in ensuring the reliability and durability of PEX plumbing systems. Whether used for residential, commercial, or industrial applications, these fittings provide a secure and efficient means of connecting PEX pipes. The dual-color design simplifies installation, while the compression technology ensures a tight, leak-proof connection. Socket fittings, in particular, are integral to connecting sections of PEX piping, ensuring that water or other fluids flow smoothly and safely through the system. By following the proper installation steps and using high-quality fittings, plumbers can ensure that PEX systems are built to last.
