1. Compliance with DIN 16836 Standards

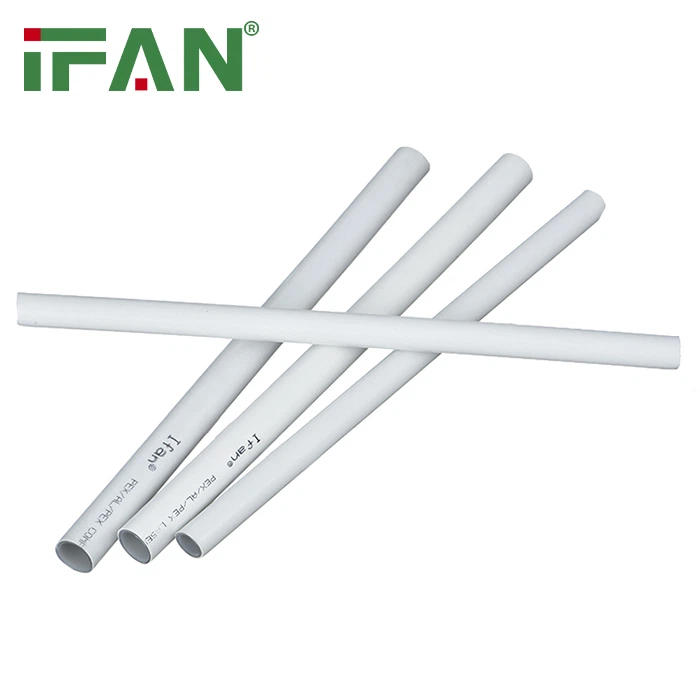

The IFAN White PEX Al PEX Pipe is manufactured in strict accordance with the DIN 16836 standard. This German standard outlines the technical specifications for multilayer composite pipes that incorporate an aluminum core surrounded by inner and outer layers of cross-linked polyethylene (PEX). The standard ensures dimensional stability, pressure resistance, thermal endurance, and overall pipe consistency. IFAN adheres to these guidelines throughout production, ensuring that each pipe is engineered with a high level of precision. Compliance with DIN 16836 verifies that the pipe can be integrated into systems requiring standardized dimensions and mechanical performance, allowing for consistent quality in large-scale and long-term projects.
2. Structure and Material Composition
The pipe consists of three main layers: an inner PEX layer, a middle aluminum core, and an outer PEX layer. These layers are bonded using a specialized adhesive to ensure material stability and cohesion under various environmental and operational conditions. The aluminum core, longitudinally or overlap-welded, serves to reinforce the structure while maintaining a low expansion rate. The inner and outer PEX layers provide flexibility and resistance to external elements. IFAN carefully controls each stage of production to ensure uniform bonding, layer thickness, and pipe roundness, maintaining the integrity required by DIN 16836.
3. Dimensional Stability and Tolerances
Adherence to dimensional specifications is crucial for system compatibility and performance. According to DIN 16836, the pipe's outer diameter, wall thickness, and ovality must fall within narrow tolerance ranges. IFAN utilizes precision calibration systems and continuous quality monitoring to ensure that each pipe maintains these strict tolerances. Dimensional stability contributes to reliable fitting connections and consistent flow characteristics. Even minor deviations in wall thickness or roundness can affect system performance, so IFAN's control processes are designed to maintain uniform dimensions throughout the production batch.
4. Mechanical Strength and Pressure Resistance
The mechanical performance of the IFAN DIN 16836 White PEX Al PEX Pipe is verified through a series of standardized pressure and load-bearing tests. The aluminum layer in the pipe provides resistance against internal pressure and mechanical stress, while the PEX layers add elasticity and impact resistance. The composite structure ensures the pipe retains its form under thermal and mechanical loads, preventing deformation or collapse. Each production run undergoes burst pressure tests and tensile strength evaluations to confirm compliance with the stress levels defined in DIN 16836, ensuring performance across different operating conditions.
5. Thermal Endurance and Stability
DIN 16836 also defines temperature performance requirements for multilayer PEX Al PEX pipes. IFAN's manufacturing process includes controlled cross-linking of polyethylene, which contributes to the pipe's thermal endurance. The aluminum layer minimizes thermal expansion, making the pipe suitable for installations where thermal fluctuations are present. IFAN ensures that the pipe maintains its shape and pressure-bearing capacity across a wide range of temperatures, by conducting thermal cycling and stability tests on a routine basis. This confirms that the product adheres to the endurance thresholds specified in the standard.
6. Oxygen Diffusion Barrier
An important aspect governed by DIN 16836 is the level of oxygen permeability through the pipe walls. The aluminum core serves as an effective oxygen barrier, preventing gas ingress into the fluid system. IFAN measures oxygen transmission rates during production using specialized testing chambers. Proper bonding between the PEX and aluminum layers is essential to maintain barrier integrity. Pipes with poorly bonded layers or inconsistent aluminum thickness may fail to meet the standard's oxygen diffusion requirements. IFAN's process includes frequent cross-section inspections and microscopic bonding checks to ensure this property is consistently achieved.
7. Surface Quality and Marking
Surface condition and pipe marking are also addressed under DIN 16836. The pipe's outer surface must be free from visible defects such as cracks, grooves, discoloration, or irregularities. IFAN implements real-time surface scanning and defect detection during extrusion and layer bonding stages. Furthermore, the pipe must be clearly marked at regular intervals with data such as manufacturer name, dimension, material designation, production date, and compliance standard. IFAN uses laser printing for permanent, non-smudging markings that maintain legibility throughout transport and storage. This facilitates traceability and ensures end users can verify compliance easily.
8. Testing and Quality Control Procedures
Each production batch of IFAN DIN 16836 White PEX Al PEX Pipe undergoes a comprehensive series of quality control tests. These include hydrostatic pressure tests, dimensional checks, layer adhesion tests, and thermal aging evaluations. IFAN's quality control labs are equipped with precision instruments and automated test rigs that simulate real-world conditions. Statistical process control is applied to monitor trends and detect deviations early. Every test is documented in line with internal and third-party auditing requirements. This structured testing framework ensures consistency across all deliveries and long-term conformity to DIN 16836 specifications.
9. Packaging, Handling, and Storage Requirements
IFAN packages its DIN 16836-compliant pipes in coiled or straight lengths, depending on customer requirements. The packaging is designed to protect the pipes from UV exposure, mechanical damage, and contamination during transit and storage. Pipes are sealed with protective end caps and wrapped in UV-resistant film or boxed, depending on diameter and length. DIN 16836 advises appropriate storage conditions, including protection from direct sunlight and high humidity. IFAN provides clear labeling and storage instructions to maintain the pipe's condition until installation. Proper packaging ensures that the pipe remains within specification up to the point of final use.
10. Summary of Technical Assurance
The IFAN DIN 16836 White PEX Al PEX Pipe is the result of rigorous engineering, standardized production, and precise quality assurance. Every element-from the selection of raw materials to the final inspection-is executed under strict controls aligned with DIN 16836 requirements. Each pipe is designed and tested to perform reliably under thermal, mechanical, and environmental stress. The multilayer structure, manufacturing precision, and extensive testing framework ensure that every meter of pipe meets the expectations for standardized piping systems. Through this commitment to quality and compliance, IFAN supports the integrity and longevity of modern piping infrastructure.
