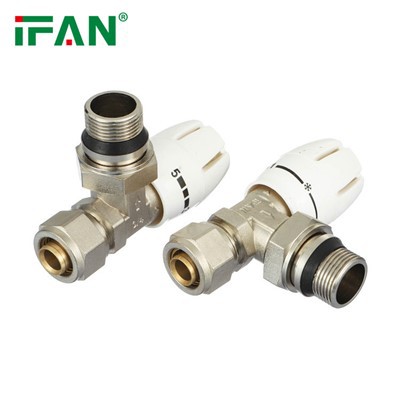

IFAN Radiator Angle Valves

Relationship Between Actuator Torque and Medium Viscosity in Brass Radiator Valves

Introduction to Brass Radiator Valve Actuation

Brass radiator valves are key components in hydronic heating systems.
They regulate fluid flow by adjusting the valve opening via an actuator.
The actuator applies a specific torque to rotate or lift the valve stem.
This torque must overcome fluid resistance, stem friction, and sealing force.
Understanding how fluid viscosity affects required torque is vital for actuator design and system efficiency.



Defining Medium Viscosity and Its Relevance

Medium viscosity refers to a fluid's internal resistance to flow.
In radiator systems, water and water-glycol mixtures are common media.
Viscosity increases with lower temperature and higher glycol content.
Higher viscosity leads to greater flow resistance and valve actuation load.
This directly influences the actuator's torque demand during operation.

Example:
A 50% glycol mixture at 25°C can have four times the viscosity of pure water.



Basics of Actuator Torque in Radiator Valves

Actuator torque is the rotational force needed to move a valve.
In brass radiator valves, torque must overcome stem friction, seat load, and hydraulic forces.
The torque depends on fluid pressure, flow rate, valve design, and media characteristics.
If the torque is too low, the actuator may stall or fail to close the valve completely.
Too much torque may lead to premature wear or energy waste.



How Fluid Viscosity Affects Valve Dynamics

Viscosity impacts how easily fluid moves through and around valve components.
Thicker fluids resist flow, increasing pressure differentials across the valve seat.
This resistance creates a higher hydraulic load on the actuator.
The stem and seat may also experience increased surface contact due to sticky flow.
The result is a measurable increase in required opening and closing torque.

Observation:
At low temperatures, valves handling viscous fluids may open slower than expected.

Experimental Setup for Torque Measurement

To study the viscosity-torque relationship, a test rig was developed.
Brass radiator valves were connected to a closed-loop fluid system with temperature control.
Various water-glycol mixtures simulated media with different viscosities.
A digital torque sensor measured actuator output under static and dynamic conditions.
Torque readings were recorded at different flow rates and temperatures (from 5°C to 60°C).



Results: Correlation Between Torque and Viscosity

The results showed a clear upward trend in torque with increasing viscosity.
For pure water, average torque was 0.6 Nm at room temperature.
For 40% glycol solution at 10°C, torque increased to 1.2 Nm.
Peak torque was recorded at low temperature with high-viscosity fluid-up to 1.8 Nm.
The findings confirm that actuator sizing must consider medium viscosity and system temperature.



Implications for Actuator Selection and Energy Use

Undersized actuators may fail in cold climates or glycol-rich systems.
Actuators should be rated with a margin above nominal torque for safety.
Overdesigning actuators, however, can lead to excess energy consumption and cost.
Choosing materials and valve designs that reduce friction can minimize torque needs.
Dynamic response time may also be affected by viscous media, requiring control algorithm adjustment.

Design Improvements for Low-Torque Performance

Several engineering strategies can mitigate viscosity-related torque increase:

Polished Stem Surfaces: Reduce friction between stem and seal.

Low-friction Seals: Use PTFE or silicone seals with minimal drag.

Optimized Flow Paths: Minimize turbulence and stagnation in valve cavity.

Smart Actuators: Use torque-sensing controls to adapt to fluid conditions.

Heating Jackets: Keep fluid above freezing point to maintain low viscosity.

These design enhancements ensure performance even under demanding media conditions.



Case Study: HVAC System in a Cold Climate Region

In a residential heating system in northern Europe, complaints arose of slow valve actuation.
Inspection revealed 45% glycol was used for freeze protection, increasing viscosity at 8°C.
Original actuators were rated at 1 Nm torque, marginal for the new media condition.
Replacing with 2 Nm torque-rated models eliminated the issue, restoring full function.
This highlighted the need to match actuator specification to real-world fluid properties.



Conclusion: Engineering for Real-World Conditions

The relationship between actuator torque and fluid viscosity is a critical design factor.
Brass radiator valves must be engineered and selected with real media conditions in mind.
Temperature, chemical composition, and viscosity variation significantly affect torque demand.
Proper actuator selection ensures reliability, energy efficiency, and long-term operation.
Future developments may include adaptive torque control and self-lubricating valve components.
By accounting for viscosity early, engineers can optimize performance in any climate or system.
