Compliance with GB-T 18992 Standard Requirements

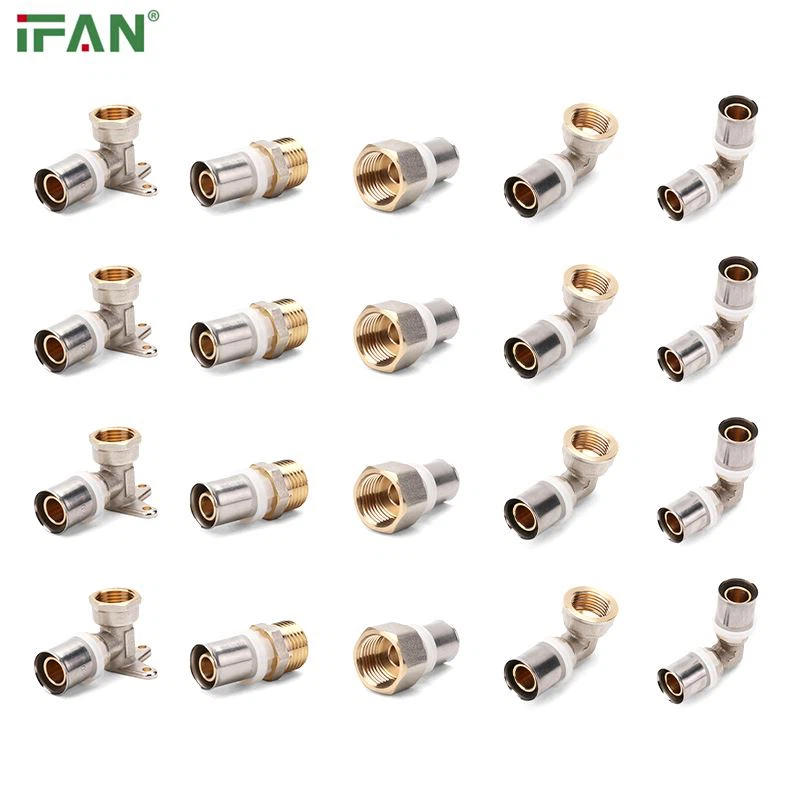

IFAN's Brass Press Fittings for PEX pipe systems are designed and manufactured in strict accordance with the GB-T 18992 national standard. This standard outlines the dimensional, material, and performance specifications for compression and press-type fittings used in hot and cold water systems. GB-T 18992 incorporates references to relevant mechanical stress testing, leak-tightness under pressure, and thermal endurance. IFAN ensures that each batch of press fittings fully meets the prescribed tolerances, performance classes, and jointing methods as outlined in this regulation. Regular audits and third-party certifications confirm continuous compliance with the national technical criteria.
Brass Composition and Metallurgical Control
The core body of IFAN GB-T 18992 Brass Press Fittings is manufactured using CW617N or HPb59-1 brass, materials widely accepted in plumbing standards due to their high strength and corrosion resistance. Each batch of raw brass is spectroscopically analyzed to verify its composition before casting or machining. The microstructure is examined post-fabrication to ensure uniform grain formation, free from porosity or segregation. IFAN maintains metallurgical records and tracks mechanical properties like tensile strength and elongation per batch, ensuring the brass meets GB-T 5231 material standards related to plumbing fittings.
Structural Design and Mechanical Jointing Features
The structural configuration of each IFAN press fitting includes a cylindrical press sleeve, sealing chamber, fitting barb, and crimp grooves designed to mechanically anchor the fitting into the PEX pipe during pressing. The GB-T 18992 standard stipulates required insertion depths and structural dimensions to ensure mechanical integrity. The inner geometries are CNC-machined with high precision to guarantee uniform force distribution across the joint. The sealing area is designed to compress an elastomeric O-ring during pressing, creating a reliable barrier against internal pressure. The fittings are also designed to prevent axial movement post-installation.
Elastomeric Sealing Elements and Compatibility
Each IFAN brass press fitting includes a high-quality elastomeric O-ring made from EPDM or HNBR rubber, in accordance with GB-T 18992 sealing performance requirements. These materials are tested to meet resistance criteria for thermal cycling, oxidation, and water treatment chemicals. O-ring dimensions are strictly controlled to ensure consistent compression within the fitting's sealing groove. Seals are tested under both static and dynamic pressure conditions at specified temperatures, with additional exposure to accelerated aging cycles to confirm durability. The seating cavity is machined to prevent twisting or displacement of the ring during pipe insertion and pressing.
Press Sleeve Construction and Profile Compatibility
The press sleeve on each IFAN fitting is fabricated from stainless steel or plated brass, designed to deform under compression force using press tools with compatible profiles. GB-T 18992 requires fittings to function with standard press jaws, such as U or TH profiles. The sleeve features visible markers for insertion depth and tool alignment, enabling reliable and repeatable jointing. IFAN's design ensures that upon pressing, the sleeve collapses uniformly to secure the pipe while compressing the O-ring, achieving a leak-proof seal. Surface hardness and material thickness are tested to ensure proper sleeve performance under force.
Mechanical and Hydraulic Testing Procedures
To validate fitting performance, IFAN conducts extensive testing as required by GB-T 18992, including internal pressure resistance, thermal stability, and mechanical pull-out strength. Fittings are subjected to hydrostatic pressure testing at ambient and elevated temperatures. In addition, mechanical tensile and bending tests are conducted to evaluate the joint's integrity under load. Test data includes burst pressure, leak inspection under sustained load, and cyclic thermal shock tests. These evaluations are performed on both newly pressed fittings and aged samples to simulate real-life plumbing conditions.
Surface Treatment and Corrosion Prevention
All brass press fittings are treated to enhance corrosion resistance and surface finish quality. Surface treatments may include sandblasting, nickel plating, or chromate conversion depending on the intended usage environment. These processes reduce the risk of dezincification and pitting, both of which can compromise mechanical integrity. Post-treatment, fittings are subjected to visual and microscopic inspection to identify surface defects, burrs, or irregularities. Corrosion resistance is confirmed via salt spray testing and chemical exposure tests, in accordance with GB and ISO plumbing standards.
Identification, Marking, and Traceability
Each IFAN press fitting is permanently marked with essential traceability data, including the fitting size, material code, production batch number, and GB-T 18992 designation. These markings are engraved or laser etched to ensure readability after installation and long-term use. Color-coded sleeves or rings may also be used to indicate fitting series or intended pipe compatibility. A full traceability system is implemented via digital batch records that include material source, operator ID, testing results, and production timestamp. This allows for seamless backward tracking in case of field issues or regulatory reviews.
Final Inspection, Packaging, and Storage Protocols
IFAN enforces a stringent quality control and packaging process in accordance with GB-T 18992 post-manufacturing guidelines. Final inspection includes pressure integrity checks, O-ring positioning verification, and sleeve dimensional conformance. Qualified fittings are cleaned, dried, and packed in moisture-protected plastic bags or cartons. Packaging labels include barcodes and QR codes for digital inventory management. Storage instructions are clearly provided to prevent O-ring degradation or metal oxidation. All products are stored in climate-controlled warehouses with humidity and temperature monitoring systems.
Conclusion: Manufacturing Excellence Under GB-T 18992
IFAN GB-T 18992 Brass Press Fittings for PEX systems are produced through a fully integrated process that adheres to China's national plumbing standards. From raw brass sourcing to final dimensional validation and pressure testing, every fitting is crafted for performance, precision, and compatibility. By aligning closely with the specifications outlined in GB-T 18992, IFAN guarantees that its press fittings deliver consistent mechanical reliability, structural integrity, and long-term durability within regulated piping networks. These fittings represent a controlled, documented, and compliant solution for standardized press-fit connections.
