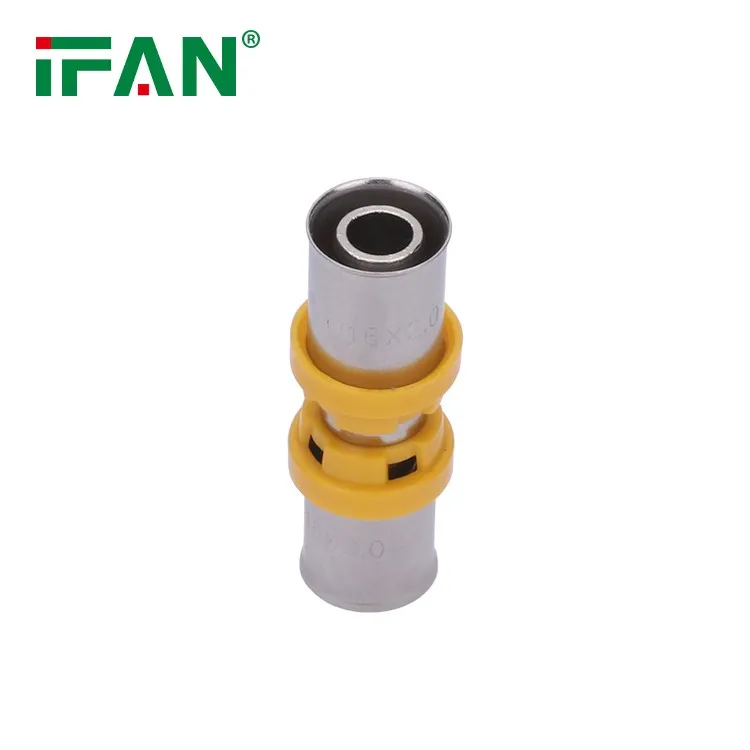

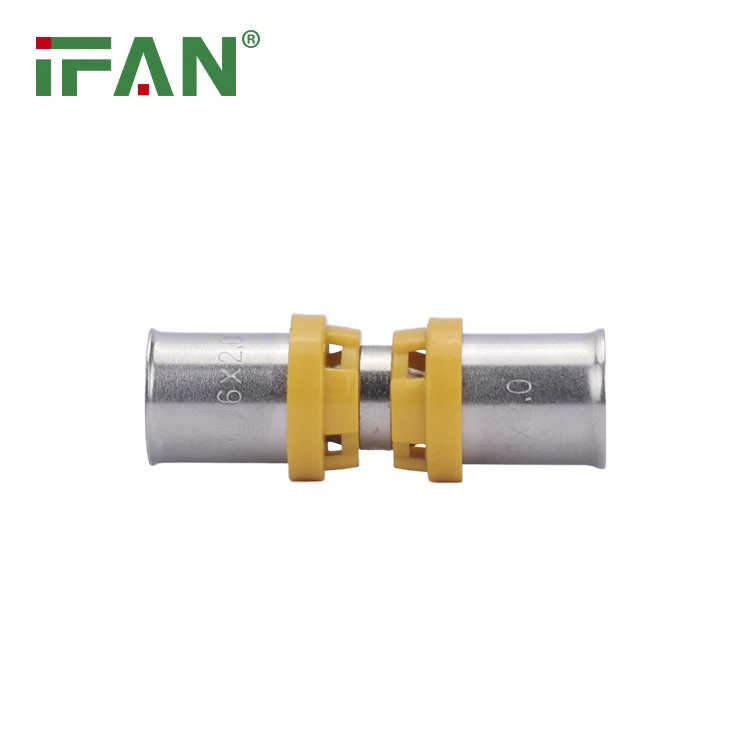

What is an IFAN ASTM D2513 PEX Yellow Equal Socket?
The IFAN ASTM D2513 PEX Yellow Equal Socket is a type of fitting designed to connect two PEX pipes of the same size. It is called an "equal" socket because both ends of the fitting are identical, allowing for the connection of two equal-diameter pipes. The yellow color helps identify these fittings, making them easy to distinguish from other types of fittings used in PEX systems.
Made from high-quality materials, the IFAN ASTM D2513 PEX Yellow Equal Socket is specifically designed to handle the unique properties of PEX piping. It features a smooth inner surface, ensuring that water flows freely through the system without restriction. Additionally, the socket design provides a simple and effective way to join two PEX pipes together, whether in a straight line or as part of a more complex plumbing network.
Key Features of the IFAN ASTM D2513 PEX Yellow Equal Socket
Equal-Sized Connection
The IFAN PEX Yellow Equal Socket is designed for use with PEX pipes of the same diameter. This uniformity makes it a straightforward fitting for applications where the pipe sizes are consistent. Whether you're connecting two pieces of pipe in a straight line or branching out to other sections of the system, the equal socket ensures a smooth and continuous connection.
Durability
The IFAN PEX Yellow Equal Socket is constructed from high-quality, durable materials that are resistant to corrosion, scaling, and degradation. PEX pipes are known for their flexibility and resistance to common plumbing issues such as freezing or cracking, and the same qualities apply to the socket. The fitting can withstand varying temperatures and pressures typically found in residential or commercial plumbing systems.
Smooth Inner Surface
The inner surface of the IFAN PEX Yellow Equal Socket is smooth, which ensures that water flows through the pipes with minimal friction. This smoothness reduces the risk of clogs or blockages within the plumbing system, making it an important component for maintaining efficient water flow.
Easy Installation
The IFAN PEX Yellow Equal Socket is designed to be simple to install, even for DIY enthusiasts. When used in combination with PEX Slide Fittings, installation can be completed without the need for crimping tools or additional equipment. The straightforward design and quick assembly process make it a popular choice for both professionals and homeowners.
Applications of the IFAN ASTM D2513 PEX Yellow Equal Socket
Residential Plumbing Systems
In residential plumbing systems, the IFAN PEX Yellow Equal Socket is frequently used to connect sections of PEX pipes running to different parts of the house. Whether it's for hot and cold water distribution or heating applications, the equal socket helps ensure a reliable and consistent water supply throughout the home.
For instance, this fitting can be used to join the main water supply to branches leading to bathrooms, kitchens, or laundry rooms. The simplicity of the design makes it suitable for both new installations and repairs or upgrades in existing systems.
Commercial Plumbing Systems
In commercial plumbing systems, the IFAN PEX Yellow Equal Socket plays a role in maintaining consistent water flow to multiple fixtures or areas within a building. Whether it's in offices, schools, or hospitals, the equal socket provides a reliable connection for PEX pipes that run throughout the building.
Given the flexibility of PEX pipes and the simplicity of the yellow equal socket, it is often used in larger commercial plumbing systems to simplify the installation process and create a reliable water distribution network.
Underfloor Heating Systems
Underfloor heating systems, which rely on PEX pipes to carry warm water under floors, also make use of the IFAN PEX Yellow Equal Socket. The fitting helps connect the pipes that carry the heated water to various sections of the floor. In these systems, precise pipe connections are essential for ensuring even distribution of heat.
Hydronic Heating Systems
Hydronic heating systems use water to heat various areas in a building, and the IFAN PEX Yellow Equal Socket is used to connect sections of piping in these systems. The fitting allows water to flow evenly through the network of pipes, maintaining a consistent temperature across the system. Whether it's in a residential or commercial building, the equal socket ensures that the hydronic system operates efficiently.
Installation Process of IFAN PEX Yellow Equal Socket
Installing the IFAN PEX Yellow Equal Socket is a simple and quick process, especially when using PEX Slide Fittings. Here's a step-by-step guide to installing the equal socket:
Cut the PEX Pipes to the Required Length
Begin by cutting the PEX pipes to the necessary lengths using a PEX pipe cutter. Ensure that the cuts are straight and clean to ensure a proper connection with the socket fitting.
Prepare the Fitting
Take the IFAN PEX Yellow Equal Socket and ensure that both ends are free from debris or damage. The socket should fit snugly over the ends of the PEX pipes.
Slide the Socket onto the Pipe
Insert the ends of the PEX pipes into each side of the IFAN PEX Yellow Equal Socket. The socket should slide onto the pipe easily and fit securely. Be sure that the connection is firm, with no gaps or spaces between the fitting and the pipe.
Secure the Connection
If using PEX Slide Fittings, the connection will automatically lock into place once the pipe is fully inserted into the fitting. This ensures a secure, leak-free connection. No crimping or additional tools are necessary for this process, which makes it faster and more efficient.
Test the System
After installation, turn on the water supply and check for any leaks or issues with the connection. If everything appears secure, the system is ready for use.
Considerations When Using the IFAN PEX Yellow Equal Socket
Correct Sizing
It's important to use the correct size of socket fitting for your PEX pipes. The IFAN PEX Yellow Equal Socket is designed for pipes of the same diameter, so make sure that the pipe sizes match the fitting before installation.
Water Pressure and Temperature
Ensure that the water pressure and temperature in the system are within the recommended range for PEX pipes. While the IFAN PEX Yellow Equal Socket is built to handle a variety of conditions, it's essential to consider the overall specifications of the plumbing system.
Pipe Compatibility
The IFAN PEX Yellow Equal Socket is compatible with PEX-A, PEX-B, and PEX-C pipes, so be sure to check the pipe material before installing the fitting. While PEX pipes are highly versatile, using the correct type of PEX pipe for the fitting is crucial to ensure a secure and leak-free connection.
Conclusion
The IFAN PEX Yellow Equal Socket is a simple yet essential fitting in modern PEX plumbing systems. Whether used in residential, commercial, or specialized plumbing applications, the socket provides an effective means of connecting two PEX pipes of the same size. Its durable construction, ease of installation, and versatility make it a preferred choice for both professional plumbers and DIY enthusiasts. By providing a reliable and efficient connection, the IFAN PEX Yellow Equal Socket helps ensure the smooth operation of plumbing systems, contributing to the overall effectiveness of water distribution networks.
