Product Information：
The connection principle of the clamping pipe: there is a special rubber sealing garden in the U-shaped groove of the port part of the clamping pipe. When installing, the port of the stainless steel water pipe should be aligned to the position of the step, and then the u-shaped groove of the bearing mouth and the side pressing part should be extruding with a special tool.Then the extrusion is to make the rubber ring play a sealing role, the clamping part of the pipe fittings and pipes shrink at the same time, is hexagonal, in order to achieve the fixed effect, to achieve the connection between stainless steel pipes.
Then there are the benefits of clamping pipe fittings connection:
1. Safe and reliable,
2. The construction is convenient to eliminate the traditional welding method of on-site welding, wire, groove and other steps, the clamping connection can be completed instantly, save time and effort, a success.
3. High strength, good shock resistance, the connection part adopts the one-time connection mode, to avoid the loosening of the pipeline.
4. Health and environmental protection 304 stainless steel material, health and environmental protection, green and safe use, to ensure the health of water quality.
All fittings with crimp end have an internal rubber gasket (O-ring) available in different types of material depending on the application.Each accessory is marked with laser or ink and can be customized according to customer requirements.
Accessories are made through a manufacturing process that involves the following main stages:
1. Pipe cutting and machining;
2. Curvature or any other processing:
3. Cold forming of O-ring seat;
4. Other components that may be welded to the fitting;
5. Solubilizing (stainless steel) or annealing and galvanizing (carbon steel) heat treatment.
6. Final inspection and packaging
7. All fittings with a maximum diameter of ø 54mm have a coloured plastic film (SLEEVE) at the end that can be used to identify any compression faults.
Product Features:

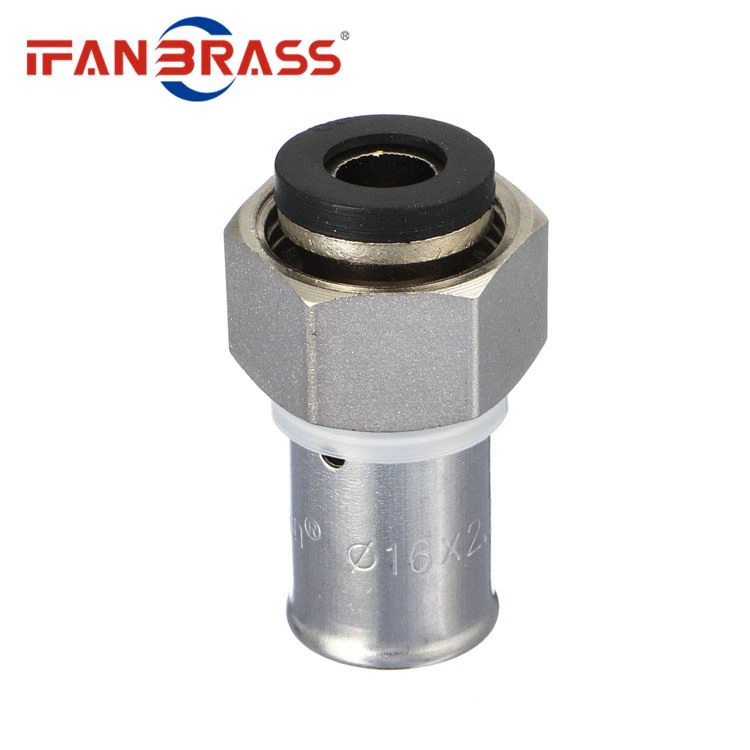

Product name: clamping flexible connection
Size: from 16 mm to 32 mm
Application: PEX-Al-PEX pipe, PE-Al-PE pipe connection, etc
Material: stainless steel or copper material
Sealing principle: rubber O-ring radial contraction tight
Connection mode: use special hydraulic tools for clamping connection
