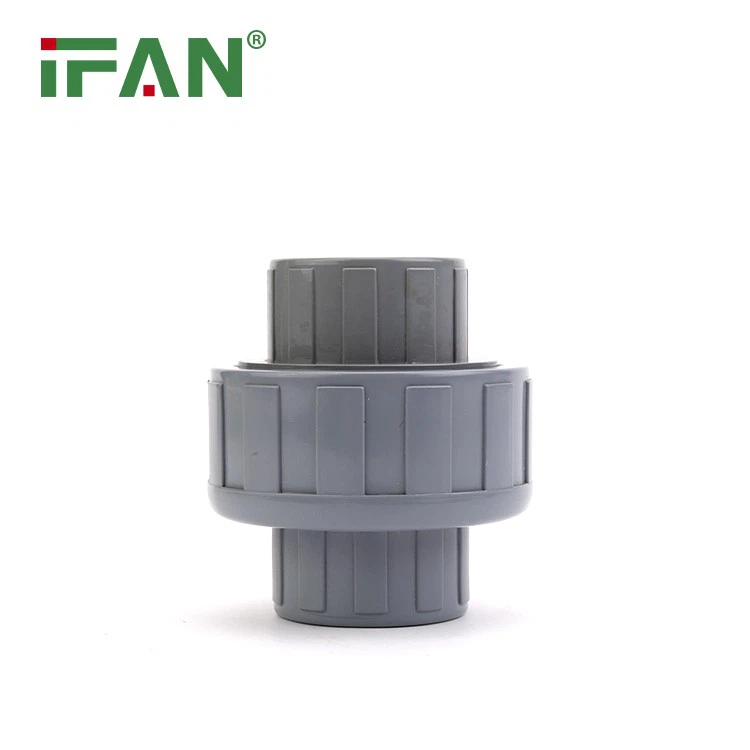

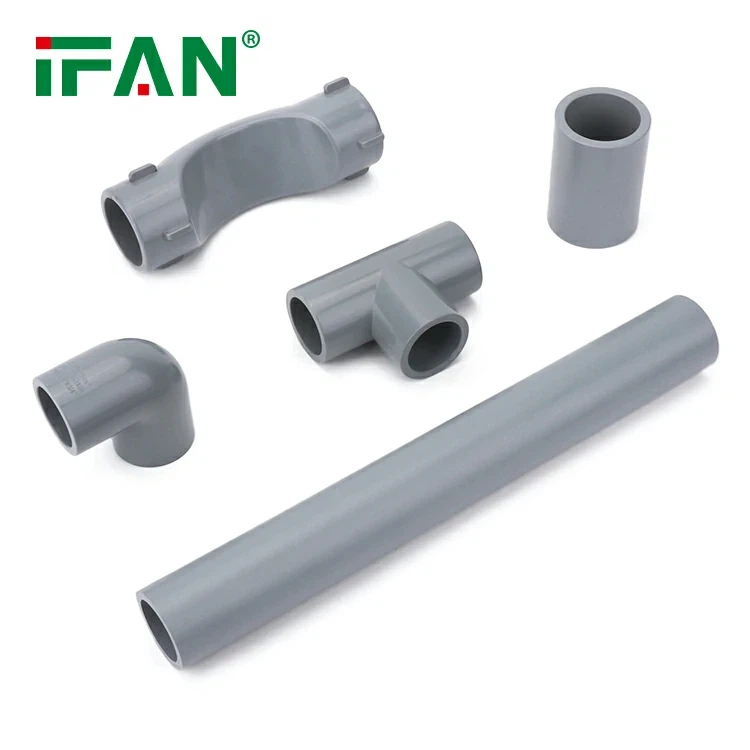

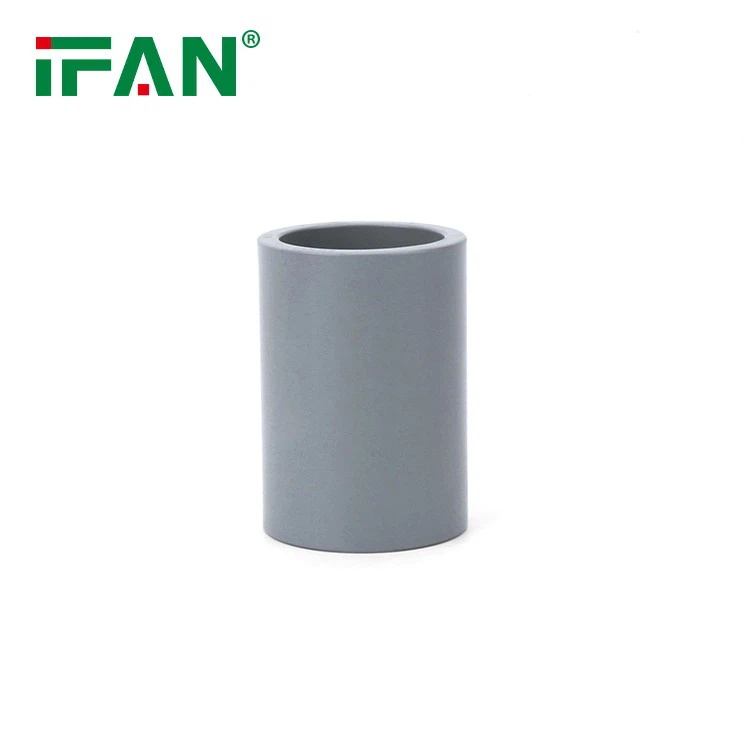

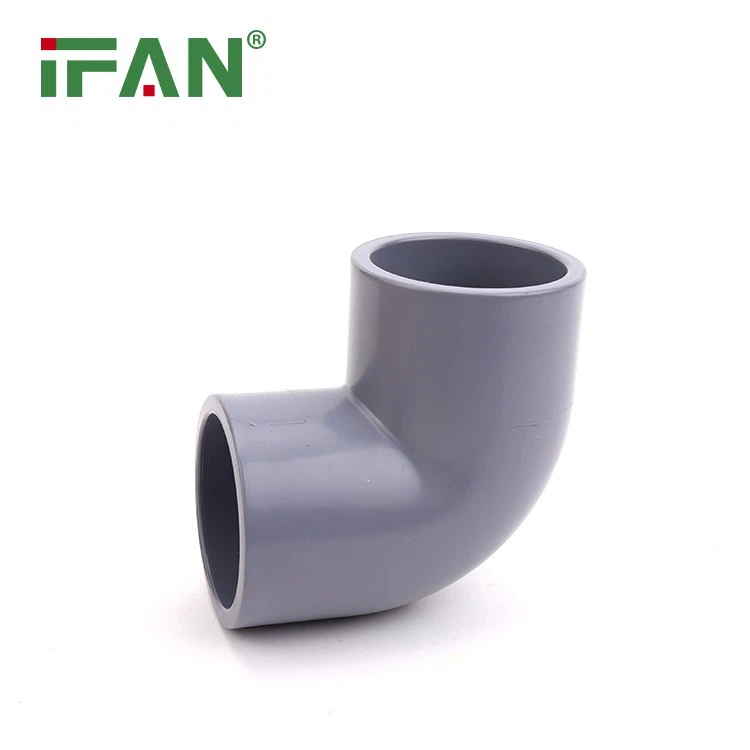

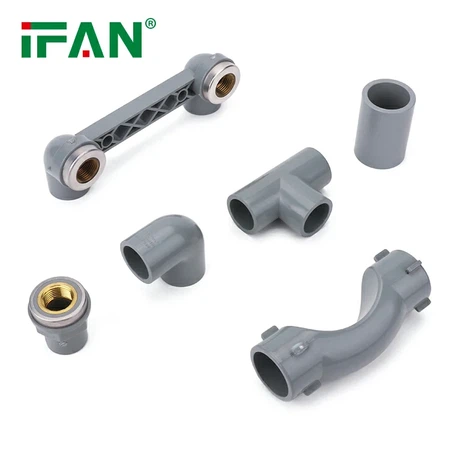

ASTMF439 SCH80 CPVC Fitting

ASTM F439 SCH80 CPVC Fitting: Advantages,Standards and Specifications

ASTM F439 SCH80 CPVC Fittings are chlorinated polyvinyl chloride (CPVC) pipe fittings manufactured in compliance with ASTM F439-19, a standard developed by the American Society for Testing and Materials (ASTM). These fittings are designed for high-pressure, corrosion-resistant piping systems, widely used in industrial water supply, chemical transport, and high-pressure building pipelines. Below is a detailed breakdown of their advantages,standards and technical requirements.

Key Advantages
> Corrosion Resistance: Withstands acids, alkalis, and salts, extending pipeline lifespan.
> High Pressure Capacity: SCH80 design enables operation under elevated pressures.
> Thermal Stability: HDT ≥ 90°C suits hot water or high-temperature fluid transport.
> Ease of Installation: Solvent cement welding eliminates the need for hot melting or complex tools, reducing labor costs.

Standard Background and Core Purpose
* Origin and Updates of ASTM F439
First published in 1974, ASTM F439 was last revised in 2019 (F439-19), reflecting the latest advancements in CPVC fitting manufacturing.
The standard aligns with ASME/ANSI Schedule 80 (SCH80) wall thickness, serving as an internationally recognized benchmark for strength and durability.
*Technical Significance of SCH80
SCH80 denotes a thicker wall compared to SCH40, enabling higher pressure resistance. For example:
An 8-inch SCH80 CPVC pipe has a wall thickness of 0.500 inches, while the same size in SCH40 measures 0.322 inches.
This design ensures enhanced safety in high-pressure environments.

Manufacturing Processes
> Molded Fittings: Produced via injection molding, ensuring dimensional accuracy and full compliance with size specifications.
> Machined Fittings: Fabricated from extruded blanks using materials conforming to D1784, suitable for complex geometries.
> Welded Fittings: Excluded from this standard (e.g., butt-welded or socket-welded fittings) to avoid process-induced defects.

Dimensional Tolerances
> Wall Thickness: Minimum wall thickness of fittings must be 125% of the corresponding SCH80 pipe's minimum wall thickness, with socket walls at least equal to the pipe's minimum.
> Example: A 4-inch fitting requires a minimum wall thickness of 0.337 inches.
> Inner Diameter Calculation: Minimum outer diameter – (2 × maximum wall thickness) = minimum inner diameter, ensuring smooth fluid flow.
> Thread Specifications: All tapered pipe threads must comply with ASTM F1498 and pass gauge inspection for leak-proof sealing.

IFAN Factory

The IFAN factory was established in 1993 and has a 120,000 square meter workshop with 610 employees. IFAN can design and produce all plumbing pipes and fittings, including PPR, PVC, CPVC, PPSU, HDPE, PEXA, PEXB, PERT, brass fittings, brass ball valves, heating systems, gas systems, faucets, and sanitary hoses.
