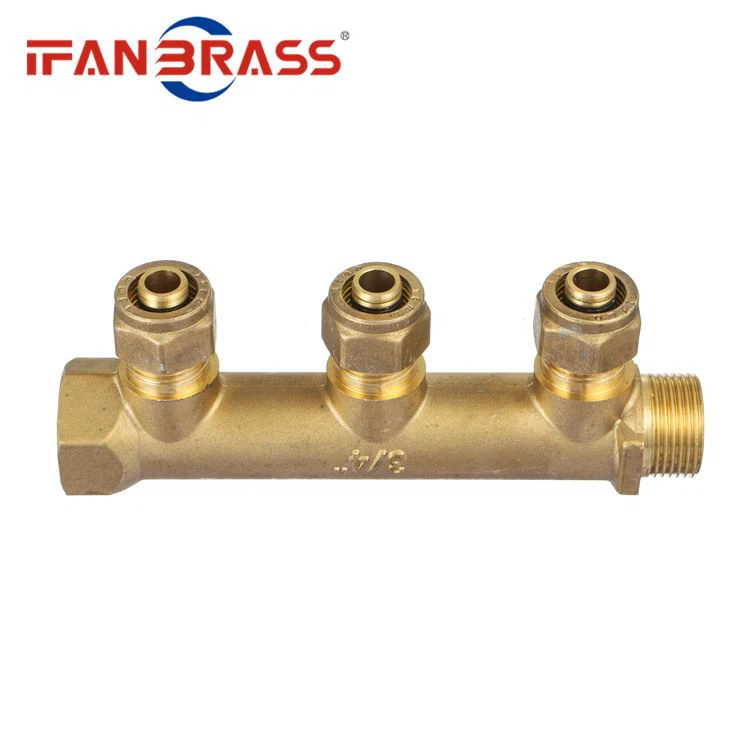

Faucet Manifold

Product Information：

Many parts are used when installing plumbing and floor heating. Among them, the Brass Manifold is a device that divides the waterway.

Regarding the installation of Brass Manifold, many users are not very clear about the specific process and what needs to be paid attention to. The quality of the installation of Brass Manifold is related to the normal use in the future, so be sure to choose professional personnel and follow the formal rules. Way to install.

Before installing the water separator, you need to pay attention to fixing the main bar first to keep it in a balanced condition. This is to allow the pressure to branch smoothly, so that the hot water in the main pipe can be evenly distributed to the branch pipes. Users often cannot complete this work by themselves, but need to ask professionals from the floor heating company to help. After the main bar is installed, start to install the water separator bracket and fix it firmly on the wall.

After the water separator is fixed, it needs to be connected to the water inlet and return pipes of the floor heating. You need to pay attention to the use of a pipe cutter to break the pipeline, and the fracture should be flat. In addition, note that the inner diameter of the water pipe needs to be coordinated, and there should be no mismatch, and aesthetics need to be considered. The location of the connection between the floor heating pipe and the water divider needs to be precise, and there should be no far-fetched or excessive deviation. This will not benefit any future use, and it will easily cause the water divider to fail or be damaged.

The bypass setting of the manifold must be done carefully. The connection position of the bypass pipe should be between the beginning of the main inlet pipe (before the valve) and the end of the main outlet pipe (after the valve), and then on the bypass pipe. Set a valve to ensure that water does not flow into the heating pipe when the heating pipeline system is flushed. The valves on the water separator (exhaust valve, drain valve, etc.) should be operated in accordance with the instruction drawings, and they should be tightened and installed firmly.

The water separator is a component that plays a decisive role in the entire plumbing system. Don’t underestimate this component. It must be installed so that the water floor heating can be heated normally. The installation of the water floor heating is very important. Users need to pay attention to this problem and find a regular and professional installation company to complete this work. Even if you spend more money, you can't just find a few people to do it on the street. The floor heating is hidden under the floor. If there are problems in the future, the trouble will be big, and the cost will increase a lot.

Product Size：

How to choose the one with or without a flow meter for the floor heating manifold?

The water separator flow meter consists of a flow mark, a scale tube, a positioning ring, a flow tube, a decorative cover, etc. The function of the scale tube: through the scale value and the position of the flow mark, you can better observe the flow of each branch; The function of the target: the water flow can be observed in real time; the function of adjusting the flow: the flow of each branch is controlled.

Use process: Use a flat screwdriver to open the decorative cover upwards and remove it; rotate the flow tube with your thumb and index finger to adjust the flow rate; control the flow of water by rotating the flow tube, turn counterclockwise to open the valve port, and the flow rate will drop , The corresponding scale value rises (0＞＞＞5), increase the water flow, turn clockwise to close the valve port, the flow mark rises, the corresponding scale value drops (5＞＞＞0), reduce the water flow, and rotate and The clutch structure between the adjusting rods keeps the flow of each line consistent; after the flow adjustment is completed, adjust the hollow port in the middle of the red circle to the position corresponding to the flow mark as a flow memory window to prevent the user from adjusting the flowmeter by himself Flow imbalance; after the flow adjustment is completed, replace the decorative cover.

The characteristics and advantages of the flowmeter: The visual flowmeter allows us to clearly see whether the flow of each branch is balanced. Because the water column pressure of each branch is different, the pressure of each branch will be lost.

In the case of poor water quality. The flowmeter needs to be cleaned. In the general small apartment, the pipeline is laid more evenly, and when the need to control the room temperature is not large, the flowmeter can not be used; for the larger apartment, there are many branches of the water separator, and it is difficult to adjust the hydraulic balance. , The visual flowmeter plays a vital role.
